Automated Slitting, Cutting, and Creasing System for High-Volume Digital Production
The DC-648 Slitter/Cutter/Creaser is a comprehensive digital finishing solution designed for print shops, graphic production centers, and print departments looking to maximize productivity without sacrificing quality. Capable of slitting, cutting, creasing, and perforating in a single pass, this equipment automates complex processes and significantly reduces setup and operation times.
Thanks to its advanced automation technology and intelligent registration, the DC-648 enables the production of printed applications with professional finishes, eliminating manual processes and optimizing digital printing workflows.
Key Features
Complete finishing in a single pass
The DC-648 integrates multiple processes into a single machine:
- Longitudinal slitting
- Transverse cutting
- Professional creasing
- Optional perforating
- Optional micro-perforating
- Optional up and down creasing
This combination allows printed sheets to be transformed into finished products quickly and efficiently.
Maximum production speed
Processes up to 40 sheets per minute, making it an ideal solution for medium and high-volume jobs requiring reduced delivery times.

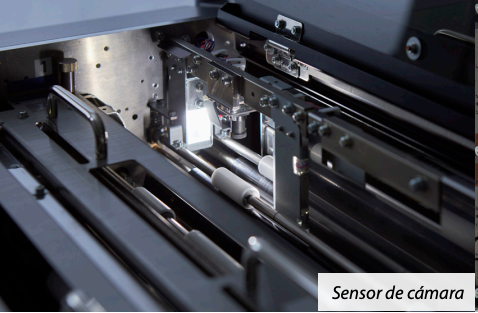

Intelligent camera registration system
Its advanced camera sensor detects barcodes, registration marks, shrink compensation, and print deviations, performing automatic adjustments that ensure exceptional accuracy in every job.
Elimination of toner cracking
The creasing system uses male and female dies to create clean and precise folds, preventing toner cracking on cards, covers, brochures, and high-grammage digital prints.
Automated job setup
The DC-648 minimizes setup times through automatic job changes, barcode reading, and memory storage of settings.
- Up to 250 stored jobs.
- Library of pre-configured templates.
- Quick setup for repetitive jobs.
Extensive processing capacity
Per sheet, it can perform:
- Up to 8 longitudinal slits.
- Up to 30 cuts.
- Up to 20 creases.
This flexibility allows the production of multiple commercial applications in a single workflow.
Compatible with various substrates
Processes materials from 110 to 400 gsm, including:
- Coated papers.
- Cardstocks.
- Laminated materials.
- UV-coated papers.
- High-grammage digital prints.
Automation that Reduces Costs
The DC-648 eliminates multiple manual intervention points within the finishing process. Its automated system allows for:
- Reduced setup times.
- Decreased waste.
- Minimized production errors.
- Optimized utilization of operating personnel.
- Increased profitability for short and medium runs.
Optional Accessories and Modules
To further expand its production capabilities, the DC-648 can be complemented with:
- RTM-09 rotary perforating module.
- CPM-09 transverse perforating module.
- 48-inch conveyor stacker.
- Card lift stacker.
- DC In-Line Folder system.
- Up-creasing module.
- PC control arm and station.
Benefits for Your Business
- Comprehensive digital finishing automation.
- Faster and more cost-effective production.
- Significant reduction in setup times.
- Professional and consistent finishes.
- Less manual intervention.
- Greater accuracy in digitally printed jobs.
- Rapid adaptation to multiple formats and applications.
Ideal Applications
The DC-648 is designed to produce:
- Business cards.
- Postcards.
- Invitations.
- Folded cards.
- Perforated coupons.
- Tickets and stubs.
- Direct mail.
- Promotional materials.
- Booklets and brochures.
- Book covers.
- Greeting cards.
- POP materials.
Productivity and Precision for Modern Digital Printing
The DC-648 Slitter/Cutter/Creaser combines advanced automation, speed, and precision in a single finishing platform. Its ability to perform multiple processes in one pass allows companies to increase productivity, reduce operational costs, and deliver professionally finished printed products of the highest quality.
