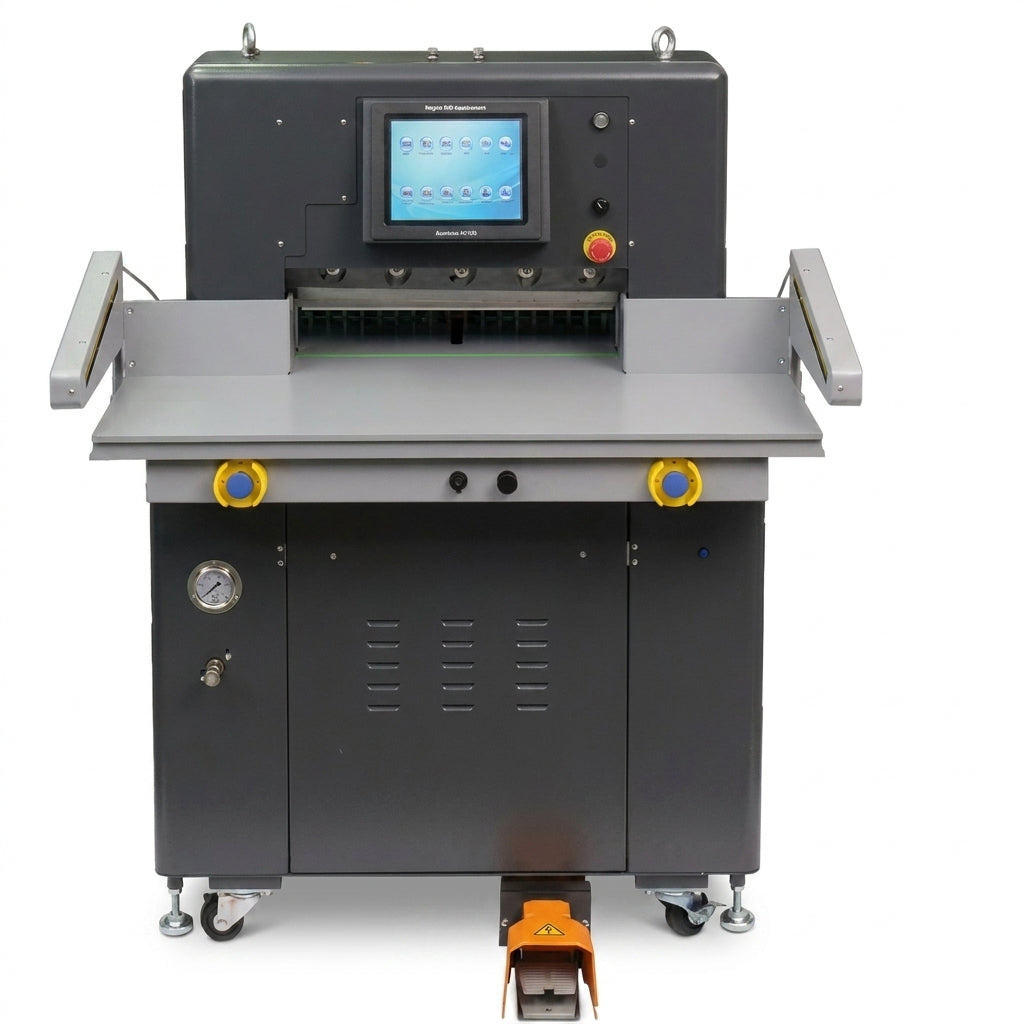

The HC-550i is an industrial cutting solution designed for print shops and production centers seeking precision, speed, and safety in high-volume jobs. Thanks to its hydraulic system and smart software, it can cut large stacks of paper with exact and consistent finishes.
With a cutting capacity of up to 550 mm wide and stacks up to 89 mm high, the HC-550i is ideal for producing postcards, direct mail, bound books, and high-demand printed materials.
Highlighted Features
High-precision hydraulic cutting
Programmable back gauge with automatic micro-adjustments
Intuitive 10.4” touch screen
Storage for up to 999 programmed jobs
Compatibility with job loading via USB and .csv files
Integrated barcode scanner for instant job recall
LED cutting line for enhanced visual precision
Automatic paper ejection function
Safety system with light curtain and dual activation buttons
Productivity and Automation
The HC-550i automates much of the cutting process, reducing errors and optimizing production times. The system guides the operator through each stage of the job, even indicating the correct direction to turn the stack between cuts. This improves efficiency and ensures consistent results in long runs.
Advanced Industrial Safety
Designed under ETL safety standards, it incorporates protection sensors, a Category 4 light curtain, and an anti-hydraulic leak system to protect the operator during operation.
Recommended Applications
Postcards
Direct mail
Bound books
POP materials
Editorial production
High-volume commercial printing
Technical Specifications
Maximum cutting width: 550 mm
Maximum stack height: 89 mm
Hydraulic clamping and cutting system
2HP hydraulic motor
Single-phase power supply 200-240VAC
Approximate weight: 465 kg
The HC-550i combines power, automation, and safety to offer a professional cutting solution that maximizes productivity in printing and graphic finishing environments.
